UL 325 and ASTM F2200: What They Actually Require of Your Automatic Gate

We are Lexington KY Metal Gates, and this guide reflects how we actually build and repair gates across the region. Automated gate safety is covered by two separate standards that work together: one for the motor and control system, one for the gate's physical structure. Knowing the difference matters because a gate can satisfy one and still fail the other.

UL 325: the operator standard

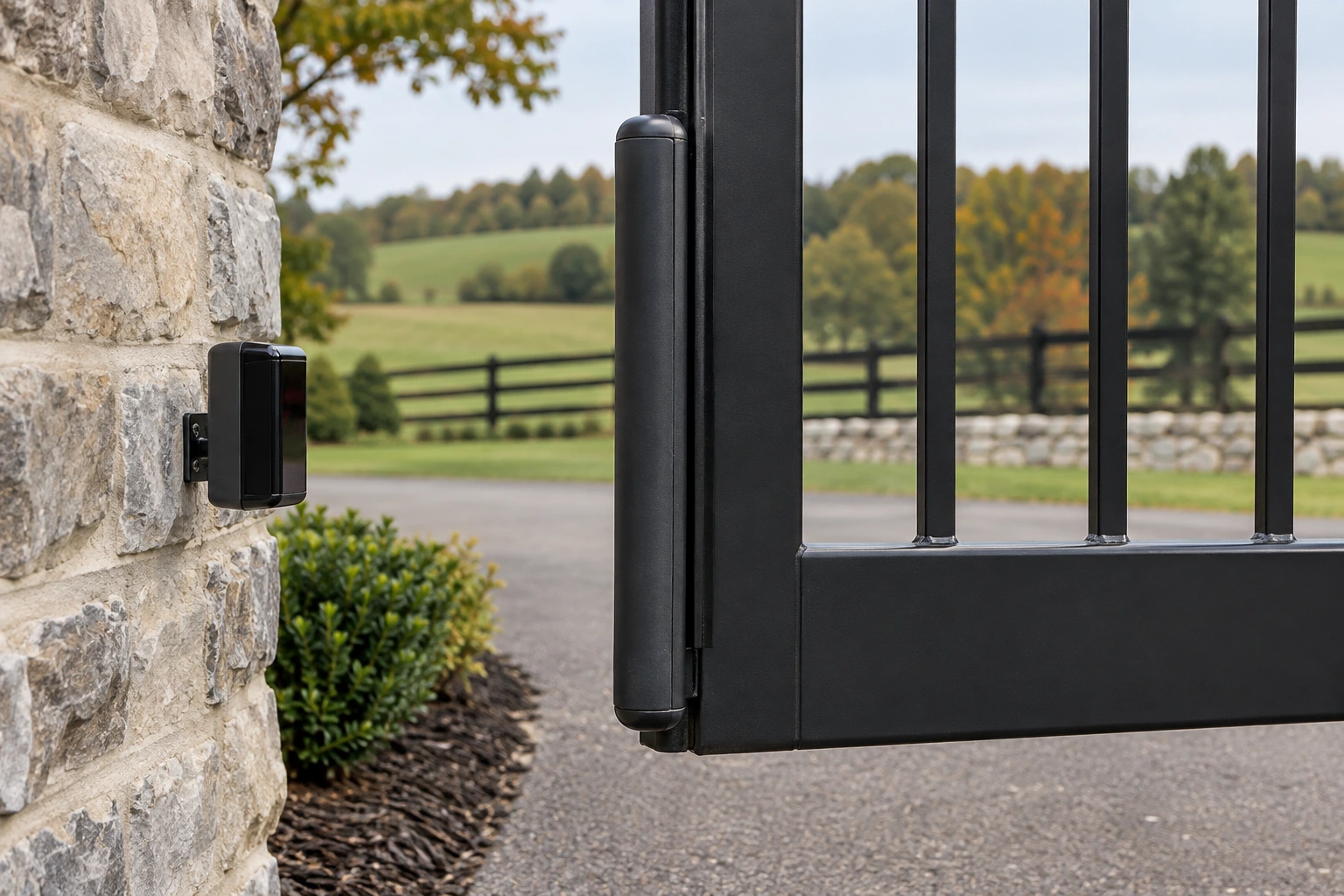

UL 325 is the safety standard that governs vehicular gate operators, the motors and control systems that automate a swing or slide gate. Under the current standard, an automated gate needs at least 2 independent means of entrapment protection on any direction of travel where an entrapment risk exists. In practice that usually means the operator's built-in inherent force sensing, which detects resistance and reverses the gate, paired with a non-contact photoelectric eye or a contact safety edge. If one device fails, the other is still there.

You should never accept an automatic gate operator that does not carry the mark of a nationally recognized testing laboratory such as UL, ETL, or MET. That mark is the only real assurance the operator has been independently tested against the current standard.

ASTM F2200: the gate construction standard

Where UL 325 covers the motor, ASTM F2200 covers the gate itself. It specifies where entrapment zones can form and how they have to be guarded. Any gap in the gate's structure, or between the gate and an adjacent fixed object, that measures between 4 and 16 inches is classified as an entrapment zone and has to be protected, either with a fixed guard or an additional sensor.

For slide gates specifically, the gate and the section of adjacent fence it travels past cannot allow a 2.25-inch sphere to pass through anywhere up to 48 inches above grade. Any weight-bearing roller or pinch point below 8 feet needs a cover. Swing gates cannot have protrusions on the bottom edge, and every gate needs fall-over protection so it cannot topple if it becomes disconnected from the operator.

Why both standards matter on the same job

We have seen gates where the operator itself is fully UL 325 compliant, properly sensored and force-limited, installed on a gate whose picket spacing creates an ASTM F2200 entrapment zone the sensors were never positioned to catch. The reverse happens too: a well-built gate automated with a single, unmonitored sensor that does not meet the UL 325 minimum. Compliance on paper for one standard does not cover the other.

Vehicle detection and access technology

Beyond the two safety standards, automated gates commonly use inductive loops cut into the pavement to sense vehicles. Exit loops open the gate for outbound traffic without requiring a code or remote. Shadow loops hold the gate open while a vehicle sits in the swing or slide path, preventing it from closing on the car. Safety loops reverse the gate if a vehicle enters the path unexpectedly. Which combination a site needs depends on traffic pattern and gate type, not just on having "a loop."

Access control varies from simple wireless keypads to Wiegand-protocol card readers, cellular video intercoms, RFID windshield tags, and Knox Box fire department access for commercial and gated-community sites where emergency responders need guaranteed entry.
